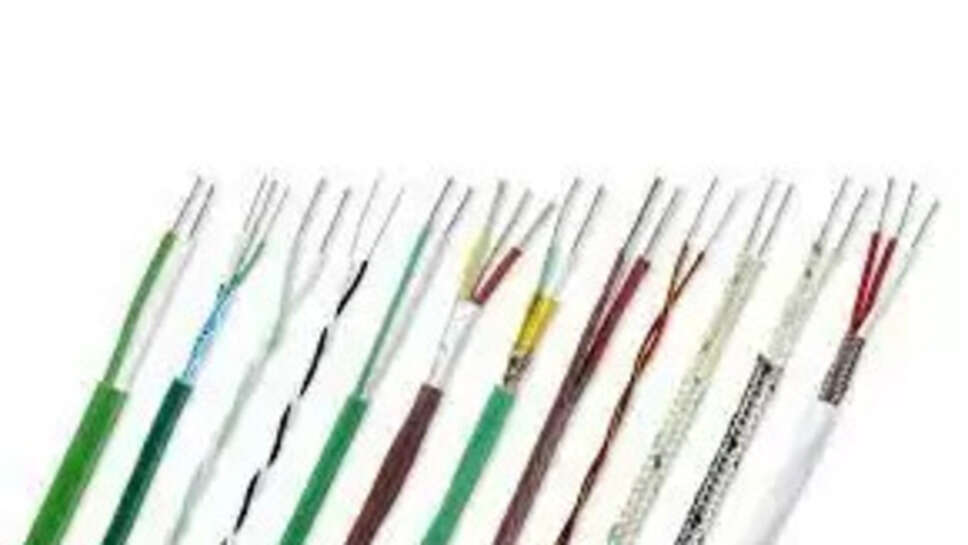

Understanding Thermocouple Wires: A Comprehensive Guide


Understanding Thermocouple Wires: A Comprehensive Guide

The thermocouple wires form the backbone of thermocouples, which allow the sensing of temperature in very harsh environments with accuracy. Thermocouple wires have been employed in manufacturing industries, research, and energy for reliability and precision.

The working principle of thermocouple wires, types, and application areas are briefed in the guide below. It also shows why Tempsens Instruments stands out among leading brand names.

Source

What is a thermocouple wire?

A thermocouple wire is essentially a conductor which, for measuring temperature, makes use of the thermoelectric current that arises at the junction of two unlike metals. Voltage at this junction changes with the difference in temperature; thus, thermocouples act as a very good medium for real time sensing of temperature.

Applications where thermocouple wires are most normally matched include those involving controllers, sensors, or data loggers with extremely high accuracy and strength.

Types of Thermocouple Wires

The most common types of thermocouple Wires include:

1. Type K (Chromel/Alumel):

  • Operating Range: 0°C to 1100°C

  • Widely used for general purpose applications due to its durability and reliability.

2. Type J: (Iron/Constantan):

  • Operating Range: -40°C to 750°C

  • Ideal for reducing atmospheres and offers good accuracy.

3. Type T (Copper/Constantan):

  • Operating Range: -185°C to 300°C

  • Best suited for low temperature environments.

4. Type E: Chromel/Constantan:

  • Temperature range of operation: 0° - 870°C

  • Offers high sensitivity, which makes them suitable for applications requiring fast response times.

5. Type N (Nicrosil/Nisil):

  • Operating Range: 0°C to 1100°C

  • Resistant to oxidation, making it suitable for high temperature applications.

Every type has been color-coded for easy identification based on the standards stipulated by International like IEC 584-3 and ANSI MC96.1.

Construction and Insulation

The thermocouple capillary cables come in either as single core, or multi core, depending with the complexity of any application. Most of them provide a PTFE, PFA, fiberglass insulation, and a ceramic fiber insulation to mount durability and fight against extreme elements.

Tempsens provide different insulation to meet the various operation conditions. For example:

  • PTFE Insulated Wires: Known for excellent resistance to chemical and extreme temperature conditions.

  • Fiberglass Insulated Wires: For high temperature industrial applications.

Applications of Thermocouple Wires

Thermocouple wires have a number of uses in many different industries because of their versatility. Below are given some of the industrial applications:

1.Industrial process monitoring

The use of thermocouple wire can be found in manufacturing plants for the measurement of critical temperatures in processes that are related to smelting, casting, and chemical synthesis processes.

2. Aerospace and Automotive

These wires provide precision in monitoring engine temperatures, the performance of turbines, and systems that control emissions.

3. Medical Equipment

Thermocouple wires have wide applications in incubators and other sterilization tools in medical device manufacturing due to the importance of exact temperature reading.

4. Energy and Power Generation

Thermocouple wires at a power plant serve the purpose of monitoring boilers, turbines, and heat exchangers in an efficient way for better energy management.

5. Food and Beverage

Thermocouple wires make it easier to maintain exact temperatures in cooking, chilling, and storage that are important in food safety and quality.

Salient Features of Thermocouple Wires

Thermocouple wires are designed for harsh environments. Their essential features include the following:

1. High Accuracy: Special Limits of Error (SLE) wires give better accuracy to applications that may require this particular aspect of the wire.

2. Durability: Strong insulation and conductor materials that will make for long life, even under extreme conditions.

3. Flexibility: Due to the application of multi-core constructions, different insulation possibilities are available in thermocouple wires.

4. Standards Compliance: Conformity to international standards like IEC and ANSI ensures reliability and interoperability.

Why Choose Tempsens for Thermocouple Wires?

In the field of temperature sensing, Tempsens Instruments has come to the fore. Their thermocouple wires are known for:

1. Product Variants: Tempsens offers a wide range of thermocouple wires, including but not limited to Type K, J, T, and many others in several insulation variants.

2. Quality Assurance: Every product is put through a series of rigid tests to fit industry standards for both reliability and performance.

3. Customization: Tempsens provides tailored solutions to meet specific industrial requirements.

4. Global Reach: Present in over 70 countries, Tempsens provides world-class solutions to industries across the globe.

How to Choose the Right Thermocouple Wire?

Certain factors underlie the choice of thermocouple wire:

  • Temperature Range: Match the wire type to the operational temperature range.

  •  Environmental Conditions: Consider the insulation that is resistant to moisture, chemicals, or abrasion.

  • Application Requirements: This is where you assess whether single-core, multi-core, or armored cables are your needs.

With this, the expert team at Tempsens will be able to help you select a suitable solution for your application.

Endnote

Thermocouple wires are amongst the cornerstones in modern temperature measuring instruments, displaying accuracy and dependability unparalleled across industries, whether it involves industrial process optimizations, food safeties, or the maintenance of medical equipment. Tempsens Instruments finds its reputation, quality, innovation, in thermocouple wires, offering a wide range supported by expert advice that provides the best perfect solution to attain your requirements for the proper item.
